The Challenge of Bulk Material Inspection
Bulk material processing presents unique challenges for quality control and foreign object detection. Products like nuts, grains, pills, pellets, and other loose materials require inspection systems that can examine individual pieces while maintaining extremely high throughput rates. Traditional inspection methods often prove inadequate for these applications due to speed limitations and detection sensitivity requirements.

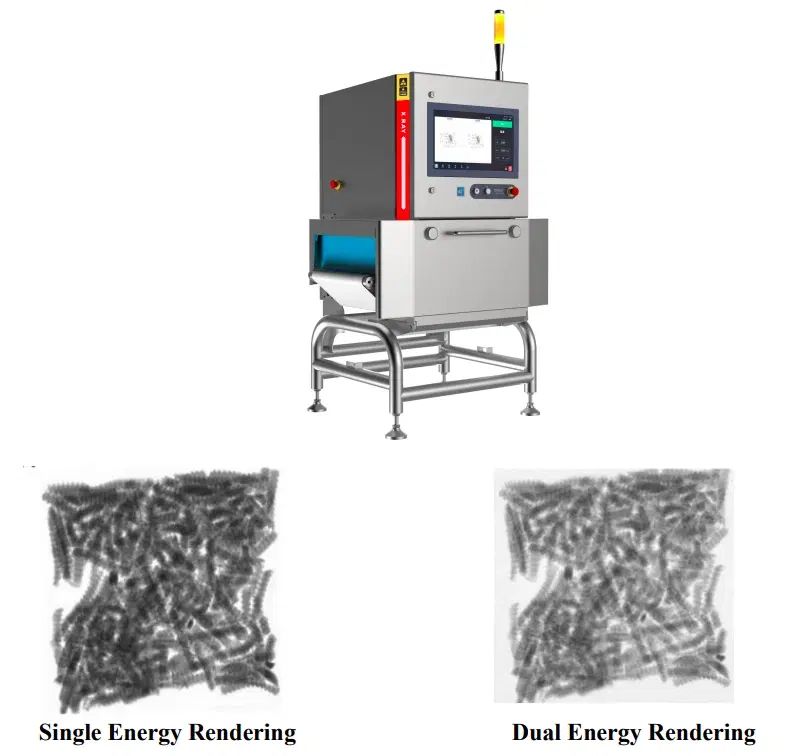

Modern bulk material X-ray inspection systems address these challenges through specialized designs that combine high-speed imaging with precision air-jet rejection technology. These systems can process materials at speeds up to 90 meters per minute while detecting foreign objects as small as 0.3mm in diameter.
Specialized System Design for Bulk Materials
Optimized Tunnel Configuration
Bulk material inspection systems feature specially designed tunnels with reduced height profiles (typically 100mm) that optimize X-ray penetration while accommodating the flow characteristics of loose materials. The 600mm tunnel width provides adequate coverage for most bulk material applications while maintaining detection sensitivity.
Advanced Conveyor Systems
Food-grade PU conveyor belts ensure product safety while providing the durability needed for continuous operation. The conveyor systems operate at variable speeds from 10-90m/min, allowing optimization for different material types and production requirements. Quick-release mechanisms enable rapid cleaning and maintenance.
Customizable Configurations
System dimensions can be customized according to specific customer requirements, accommodating different production line layouts and material handling systems. Flexible mounting options and modular designs enable integration with existing processing equipment.
High-Precision Detection Technology
Enhanced Sensitivity
Bulk material systems achieve exceptional detection sensitivity with the ability to identify stainless steel balls as small as 0.3mm, stainless steel wire (0.2mm x 2mm), glass fragments (1.0mm), and ceramic pieces (1.0mm). This sensitivity level ensures comprehensive contamination detection across various material types.
Real-Time Image Processing
Advanced image processing algorithms analyze X-ray images in real-time, identifying foreign objects within the continuous stream of bulk materials. The systems process thousands of individual pieces per minute while maintaining consistent detection accuracy.
Material-Specific Optimization
Detection algorithms can be optimized for specific bulk materials, accounting for variations in density, size, and shape. This optimization ensures maximum sensitivity while minimizing false positives that could reduce production efficiency.
Advanced Air-Jet Rejection Technology
Multi-Lane Rejection Systems
Integrated 32/64 array jet valves provide precise rejection of contaminated materials. Each valve can be individually controlled to target specific contaminated pieces while allowing good product to continue through the system. This precision rejection minimizes product waste while ensuring complete contaminant removal.
High-Speed Response
Air-jet systems respond within milliseconds of detection, enabling effective rejection even at high conveyor speeds. Precise timing calculations account for material trajectory and system delays to ensure accurate targeting of contaminated pieces.
Contamination Containment
Rejection systems direct contaminated materials into separate collection bins, preventing cross-contamination and enabling analysis of rejected materials for process improvement. Automatic waste handling systems can be integrated for continuous operation.
Applications Across Industries
Nut Processing
Nut processing operations benefit significantly from bulk material inspection, as nuts commonly contain shell fragments, foreign stones, and metal contamination from processing equipment. X-ray systems can detect these contaminants while accommodating the irregular shapes and varying densities of different nut varieties.
Pharmaceutical Manufacturing
Pharmaceutical pill and tablet production requires extremely high quality standards. Bulk material inspection systems verify pill integrity, detect foreign objects, and identify malformed tablets at high production speeds. The systems support GMP compliance and regulatory requirements.
Agricultural Products
Grain, seed, and dried fruit processing applications rely on bulk material inspection to remove stones, metal fragments, and other foreign objects. The systems help maintain product quality while meeting food safety standards for human consumption and animal feed applications.
Quality Control and Process Optimization
Real-Time Quality Monitoring
Bulk material inspection systems provide continuous quality monitoring with real-time statistics on contamination rates, rejection percentages, and system performance. This data enables immediate response to quality issues and supports continuous improvement initiatives.
Trend Analysis
Historical data analysis identifies trends in contamination sources, seasonal variations, and process improvements. This information supports preventive maintenance programs and helps optimize upstream processes to reduce contamination at the source.
Automated Reporting
Comprehensive reporting systems generate quality control documentation, regulatory compliance reports, and production summaries. Automated report generation reduces administrative burden while ensuring complete quality documentation.
Integration and Automation Benefits
Production Line Integration
Bulk material inspection systems integrate seamlessly with existing production lines, sorting equipment, and packaging systems. Standard communication protocols enable coordination with upstream and downstream equipment for optimized material flow.
Reduced Labor Requirements
Automated inspection and rejection reduce the need for manual sorting and quality control personnel. This automation improves consistency while reducing labor costs and human error risks.
Increased Throughput
High-speed processing capabilities often exceed the capacity of manual inspection methods, enabling increased production throughput while maintaining or improving quality standards. Some operations see throughput increases of 200-300% compared to manual sorting.
Economic Benefits and ROI
Contamination Prevention
Preventing contaminated products from reaching customers eliminates costs associated with recalls, customer complaints, and brand reputation damage. The systems typically prevent contamination incidents that could cost hundreds of thousands of dollars in recall expenses.
Operational Efficiency
Automated inspection and rejection improve operational efficiency by reducing manual labor requirements and increasing processing speeds. Many operations achieve payback periods of 12-24 months through improved efficiency and reduced waste.
Quality Consistency
Consistent quality control builds customer confidence and supports premium pricing strategies. Reliable contamination detection enables manufacturers to guarantee product quality and differentiate their products in competitive markets.
