Dual Energy X-ray Technology: Advanced Bone Detection in Meat Processing

The Challenge of Bone Detection in Meat Processing

Bone detection in meat products represents one of the most challenging applications in food safety inspection. Traditional single-energy X-ray systems often struggle to distinguish between bone fragments and other dense materials, leading to high false alarm rates and potential safety risks. Dual energy X-ray technology addresses these challenges by providing superior material discrimination capabilities.

The meat processing industry faces increasing pressure to ensure product safety while maintaining high throughput rates. Bone contamination can cause serious injury to consumers and result in costly product recalls, making reliable detection systems essential for modern meat processing operations.

How Dual Energy X-ray Technology Works

Dual Energy Principles

Dual energy X-ray systems use two different energy levels to analyze products, typically operating at 30-80kV and 60-120kV simultaneously. Different materials absorb X-ray energy at different rates depending on their atomic composition and density. By comparing absorption patterns at two energy levels, the system can distinguish between materials that would appear similar on single-energy systems.

Material Discrimination

The dual energy approach excels at differentiating between organic and inorganic materials. Bone, cartilage, and foreign objects like metal or glass create distinct absorption signatures that allow for accurate identification even in complex meat products. This capability is particularly valuable for processed meats, ground products, and prepared foods where visual inspection is impossible.

Enhanced Image Processing

Advanced algorithms analyze the dual energy data to create high-contrast images that highlight potential contaminants. The system can suppress background materials while enhancing target objects, resulting in clearer identification of bone fragments, fish bones, and foreign objects as small as 0.1mm.

Advanced Detection Capabilities

Bone Fragment Detection

Dual energy systems can reliably detect bone fragments in various meat products, including ground beef, chicken nuggets, and processed sausages. The technology is particularly effective at identifying calcified bone tissue, which has distinct X-ray absorption characteristics compared to muscle tissue and fat.

Fish Bone Detection

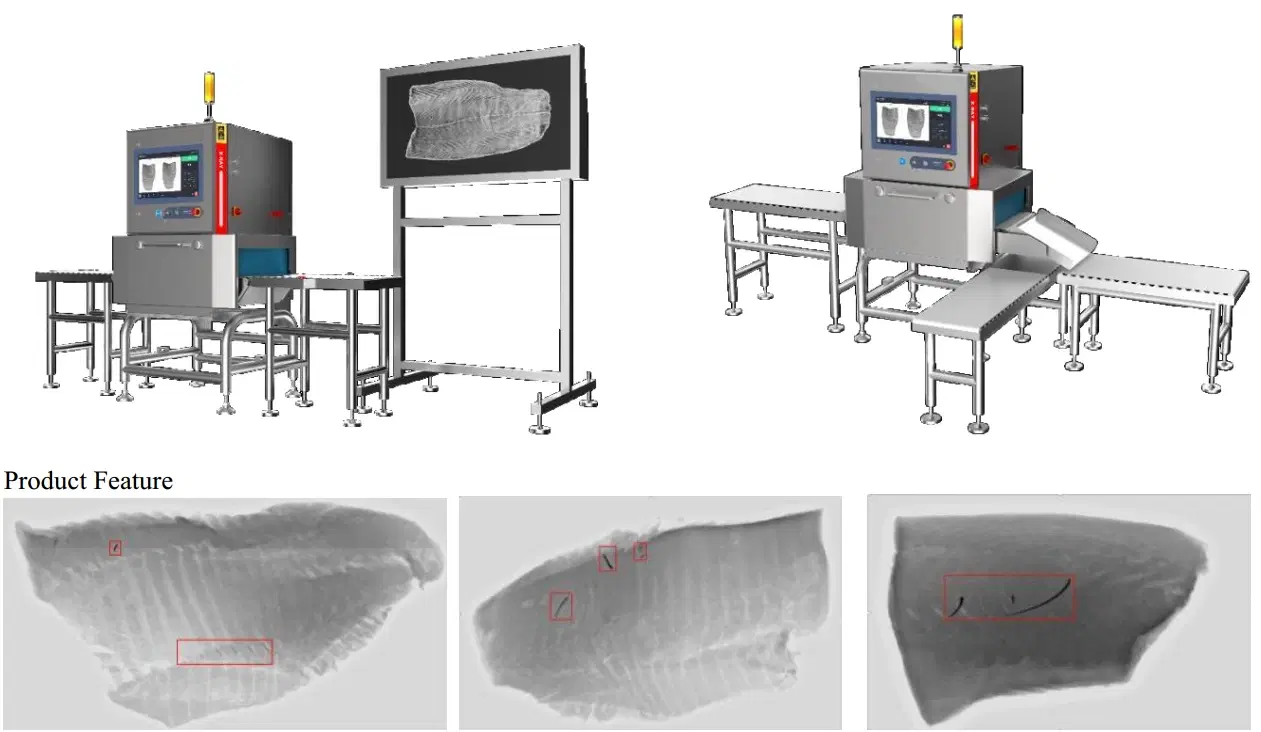

Fish processing benefits significantly from dual energy technology, as fish bones are notoriously difficult to detect using conventional methods. The system can identify fish bones as small as 0.18mm x 0.18mm in fish fillets, ensuring consumer safety while maintaining product quality.

Cartilage and Soft Tissue Anomalies

Beyond hard bone detection, dual energy systems can identify cartilage, tendons, and other tissue anomalies that may affect product quality or pose safety risks. This comprehensive detection capability ensures consistent product quality across production runs.

AI-Powered Recognition Systems

Machine Learning Integration

Modern dual energy systems incorporate AI algorithms that continuously learn from production data to improve detection accuracy. These systems can distinguish between acceptable tissue variations and actual contaminants, reducing false positives that can slow production and increase costs.

Automated Classification

AI algorithms automatically classify detected objects, determining whether they represent bone fragments, foreign objects, or acceptable product variations. This intelligent classification reduces the need for manual review and enables faster production speeds.

Adaptive Learning

The system adapts to variations in product composition, seasonal changes in raw materials, and different meat cuts. This adaptability ensures consistent performance across diverse product lines and changing production conditions.

Specialized Applications

Ground Meat Products

Ground meat presents unique challenges due to the uniform texture that can mask bone fragments. Dual energy systems excel in this application, providing reliable detection without the texture cues available in whole muscle products.

Processed Poultry

Chicken and turkey processing benefits from dual energy inspection, particularly for mechanically separated meat and ground poultry products where bone contamination risks are highest. The system can detect both hard bone fragments and softer cartilage pieces.

Seafood Processing

Fish and seafood processing operations rely on dual energy systems for comprehensive bone detection in fillets, ground fish products, and prepared seafood items. The technology is essential for maintaining quality standards in products destined for further processing or direct consumption.

Implementation Benefits

Improved Food Safety

Dual energy systems significantly reduce the risk of bone contamination reaching consumers, protecting both consumer safety and brand reputation. The technology provides confidence in product safety that traditional inspection methods cannot match.

Reduced False Alarms

Superior material discrimination capabilities result in fewer false positive detections compared to single-energy systems. This reduction in false alarms improves production efficiency and reduces product waste.

Enhanced Productivity

By providing reliable detection with minimal false alarms, dual energy systems enable higher production speeds while maintaining quality standards. Operators can focus on actual quality issues rather than investigating false positives.

Technical Specifications and Performance

Detection Sensitivity

Modern dual energy systems can detect stainless steel balls as small as 0.3mm, stainless steel wire (0.2mm x 2mm), glass fragments (1.0mm), and ceramic pieces (1.0mm). For bone detection, sensitivity extends to fragments as small as 0.1mm under optimal conditions.

Production Integration

Systems integrate seamlessly with existing production lines, accommodating conveyor speeds up to 60m/min and product loads up to 30kg. Automatic rejection systems ensure contaminated products are removed without interrupting production flow.

Environmental Durability

Built for demanding food processing environments, dual energy systems feature IP66 waterproof ratings, corrosion-resistant stainless steel construction, and industrial air conditioning for reliable operation in harsh conditions.
