Specialized Inspection Challenges for Containers
Bottles, jars, and cans present unique inspection challenges that require specialized X-ray systems. These containers often contain liquids, thick glass walls, or metallic packaging that can interfere with traditional inspection methods. Modern X-ray systems designed specifically for container inspection overcome these challenges while providing comprehensive quality assurance.
Container inspection systems must verify not only the absence of foreign objects but also proper fill levels, seal integrity, and container condition. This multi-faceted approach ensures product quality and safety while maintaining high-speed production requirements.
Container-Specific Detection Capabilities

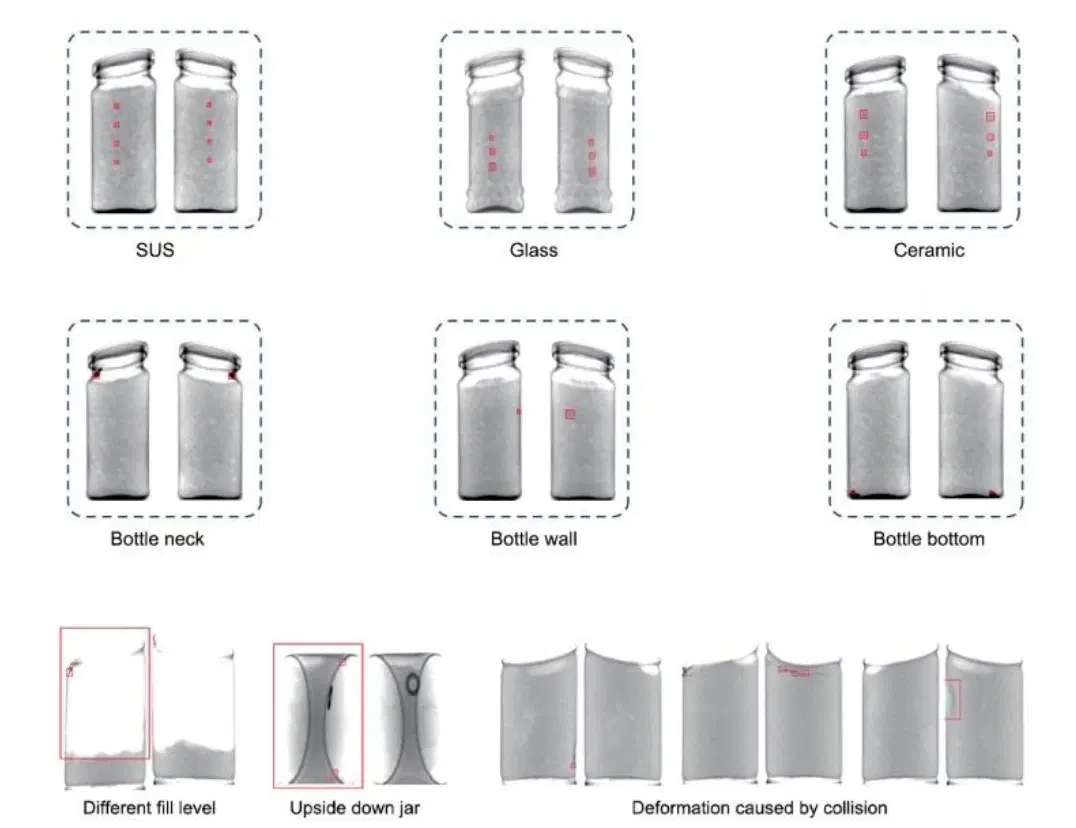

Foreign Object Detection in Containers
X-ray systems can detect foreign objects within sealed containers regardless of packaging material. Metal fragments, glass pieces, ceramic shards, and stone particles are easily identified even within thick-walled glass jars or aluminum cans. The systems maintain sensitivity levels of 0.5mm for stainless steel balls and 1.5mm for glass and ceramic objects.
Fill Level Verification
Automated fill level inspection ensures consistent product volume across production runs. X-ray systems can detect underfilled containers, overfilled products, and irregular fill patterns that may indicate production problems. This capability is essential for regulatory compliance and customer satisfaction.
Container Integrity Assessment
X-ray inspection identifies container defects including cracks, chips, deformations, and structural weaknesses that could compromise product integrity or safety. Early detection of container problems prevents failures during distribution and storage.
Advanced Detection Technologies
Multi-View Inspection
Container inspection systems often employ multiple X-ray sources and detectors to examine products from different angles. This multi-view approach ensures comprehensive coverage of cylindrical containers and complex geometries where single-view systems might miss defects.
High-Resolution Imaging
Advanced detector arrays provide high-resolution images that reveal subtle defects and small foreign objects. 0.1mm detectors enable precise detection of minute contaminants while maintaining production speeds suitable for high-volume operations.
Automated Recognition Systems
AI-powered algorithms automatically identify and classify different types of defects and foreign objects. These systems learn from production data to improve accuracy and reduce false positives while adapting to variations in container designs and product formulations.
Specific Applications by Container Type
Glass Bottles and Jars
Glass container inspection focuses on detecting foreign objects within the product while also identifying glass defects such as stress fractures, chips, and thin walls that could lead to breakage. Specialized algorithms compensate for the X-ray absorption characteristics of glass packaging.
Aluminum Cans
Aluminum can inspection systems detect foreign objects while also verifying proper can formation, seaming quality, and fill levels. The systems can identify dents, deformations, and sealing defects that could compromise product integrity or shelf life.
Plastic Bottles
Plastic bottle inspection combines foreign object detection with verification of bottle formation quality. Systems can detect wall thickness variations, neck defects, and proper cap placement while maintaining sensitivity to small contaminants within the product.
Production Line Integration
High-Speed Processing
Container inspection systems accommodate production speeds of 30-60 meters per minute, enabling integration with high-speed bottling and canning lines. Automatic reject mechanisms ensure defective products are removed without interrupting production flow.
Flexible Configuration
Modular system designs allow for easy reconfiguration to accommodate different container sizes and types. Quick changeover capabilities minimize downtime when switching between product lines or container formats.
Data Integration
Advanced systems integrate with production management software to provide real-time quality data, trend analysis, and automated reporting. This integration supports quality management systems and regulatory compliance requirements.
Quality Assurance Benefits
Comprehensive Inspection
Container inspection systems provide 100% inspection coverage, examining every product for foreign objects, fill level accuracy, and container integrity. This comprehensive approach ensures consistent quality and reduces the risk of defective products reaching consumers.
Traceability and Documentation
Complete inspection records provide full traceability for quality management and regulatory compliance. Detailed images and data for each inspected container support investigation of quality issues and continuous improvement initiatives.
Cost Reduction
Early detection of quality problems reduces waste, prevents costly recalls, and minimizes customer complaints. The systems typically provide return on investment within 12-18 months through improved quality and reduced operational costs.
Technical Specifications
System Configuration
Container inspection systems feature tunnel dimensions optimized for specific container types, with models available for products up to 800mm wide and 500mm high. Conveyor systems use food-grade materials and accommodate product loads up to 30kg.
X-ray Performance
Advanced X-ray sources operate at 60-120kV with tube currents up to 7500μA, providing optimal penetration for various container materials. Multiple exposure detection capabilities enhance sensitivity for challenging applications.
Environmental Protection
IP65/IP66 protection ratings ensure reliable operation in wet processing environments. Industrial air conditioning maintains optimal operating temperatures while protective curtains provide radiation shielding and safety compliance.
Implementation Considerations
System Selection
Choosing the appropriate container inspection system requires careful consideration of product types, production speeds, space constraints, and quality requirements. Consultation with experienced suppliers ensures optimal system configuration for specific applications.
Operator Training
Comprehensive operator training ensures effective system utilization and maintenance. Training programs should cover system operation, quality standards, troubleshooting procedures, and safety protocols.
Maintenance Programs
Regular maintenance programs maintain system performance and extend equipment life. Preventive maintenance schedules should include calibration verification, detector cleaning, and software updates to ensure continued reliability.
